برای قیمت تماس بگیرید
G-One یک کنترل پنل تک لوپ آدرس پذیر همه کاره با اتصال پیشرفته است و دارای گواهینامه کامل CPR با استاندارد و EN54-4 EN54-2 است. این دستگاه که با توجه به مقرون به صرفه بودن و انعطاف پذیری طراحی شده است و طراحی پیچیده را با نصب آسان و بصری ترکیب می کند.
G-One یک کنترل پنل تک لوپ آدرس پذیر همه کاره با اتصال پیشرفته است و دارای گواهینامه کامل CPR با استاندارد و EN54-4 EN54-2 است. این دستگاه که با توجه به مقرون به صرفه بودن و انعطاف پذیری طراحی شده است و طراحی پیچیده را با نصب آسان و بصری ترکیب می کند. همچنین راه اندازی ساده ای دارد و راه حل ایده آلی برای طیف گسترده ای از برنامه های تک لوپ، برای دفاتر و مدارس و بیشتر رستوران ها، تا مغازه ها به حساب می اید. G-One دارای ارتباطات شبکه چند ماهرانه نظیر به نظیر Chameleon و اثر قدرتمند با قابلیت برنامه نویسی است. این دستگاه می تواند با حداکثر 32 کنترل پنل اطفاء حریق از محدوده GFE شبکه شود و دارای یکپارچگی دیجیتالی بالایی است.
پروتکل برای نظارت با سرعت بالا و ارتباطات داده با حداکثر 250 دستگاه در یک حلقه ممکن است صورت پذیرد. این کنترل پنل نصب بسیار آسانی دارد، G-One را میتوان برنامهریزی کرد و آن را یا بر سطوح یا درون دیوار جاسازی نمود. دیگر ویژگیهای آن شامل صفحهنمایش LCD گرافیکی به همراه نور آبی با نور پسزمینه منحصربهفرد است که یک رابط کاربری واضح و مؤثر را تضمین میکند. به طور کامل G-One با تمام دستگاه های حلقه آدرس پذیر دیجیتال آنالوگ ساخته شده توسط GFE سازگار است و ساختار منوی آن یکسان است.پنل های GFE موجود، اطمینان از اموزش راحت و سهولت کار برای کاربران را فراهم ساخته اند.

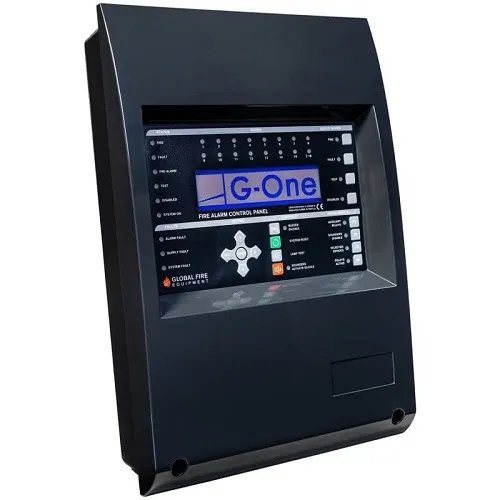

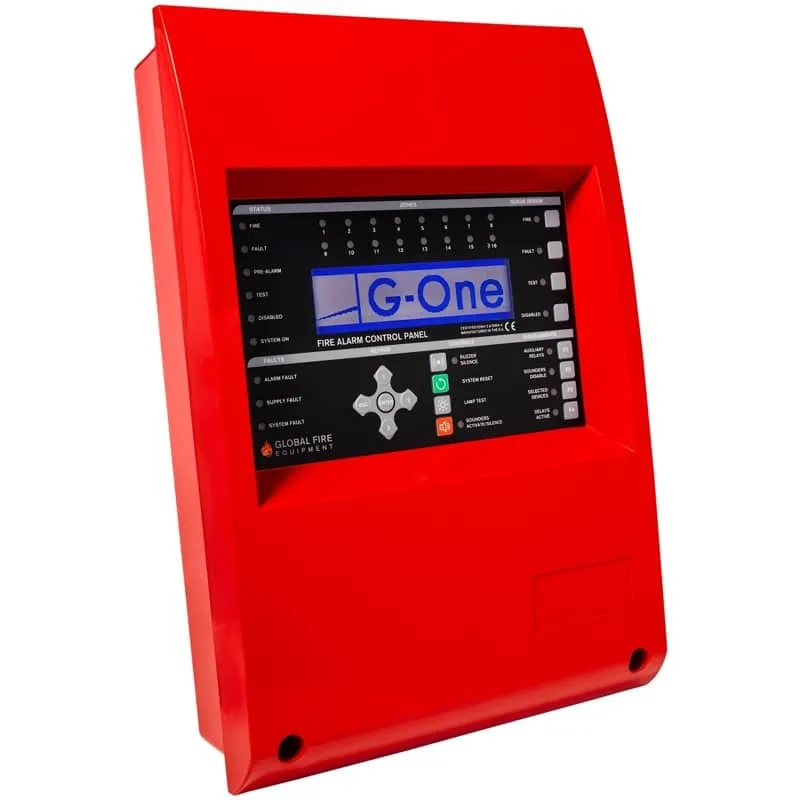

The G-One is a versatile addressable single loop fire control panel with advanced connectivity and is fully CPR certified to EN54-2 and EN54-4.
Designed with affordability and flexibility in mind, the G-One combines sophisticated design with easy installation and intuitive commissioning, making it the ideal solution for a wide range of single loop applications, from offices and restaurants, to shops, schools and more.
The G-One incorporates sophisticated Chameleon peer-to-peer multi-master network communications and powerful cause and effect programming capability. It can be networked with up to 32 fire control panels from the GFE range and has a high-integrity digital protocol for resilient high-speed monitoring and data communication with up to 250 devices on a single loop. Easy to install, programme and operate, the G-One can be either surface or recessed mounted.
A unique installer-friendly dynamic, automatic self-learn facility bypasses the traditional manually initiated auto-learn process. Other features include a unique high resolution back-lit blue graphical LCD display, which ensures a clear and effective user interface. The G-One is fully compatible with all GFE-manufactured digital analogue-addressable loop devices and its menu structure is identical to existing GFE panels, ensuring familiarity and ease of operation for users.
● 900mA single loop (digital communication) addressable fire alarm control panel
● Up to 32 G-One, GEKKO, OCTO+ and NODE+ panels can be networked
● Connection to the repeater panels via RS422, Fibre-Optic or TCP/IP
● 250 devices per loop (125 address limit)
● Up to 95 VULCAN 2 (addressable) ultra-low current base sounders (32 address limit) per loop.
● 32 individually programmable sounder addresses
● Full Self-Addressing device support
● 2 Fire output relays (change-over) and 1 Fault relay (NC)
● 2 Non-addressable (conventional) alarm outputs (individually programmable)
● High integrity loop communication and device monitoring
● 384 fully programmable network zones
● 512 fully programmable alarm (sounder) groups
● 512 I/O groups
● Event log (10000 events)
